Also referred to as a VRF system, variable refrigerant flow is a technology that circulates only the minimum amount of refrigerant needed during a single heating or cooling period. This mechanism introduced the opportunity for end users to individually control several air conditioning zones at one time.

Which refrigerant is used in VRF system?

R-410A refrigerant
VRF systems use R-410A refrigerant as the heat-transfer fluid and the working fluid, achieving a very high energy efficiency ratio (EER) of 15 to 20 and integrated energy efficiency ratio (IEER) of 17 to 25.

What are the two types of VRF systems?

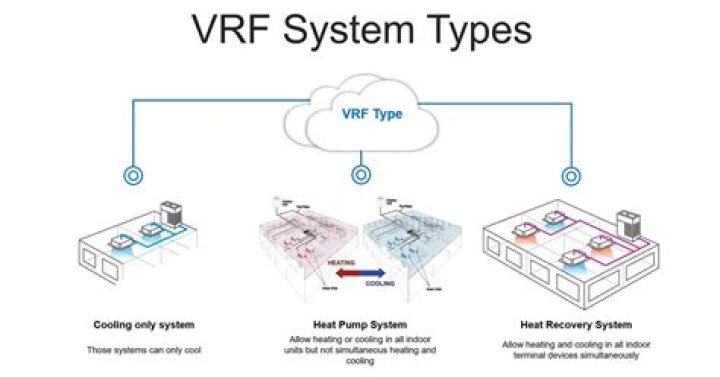

Different Types of VRF Systems:

  • Heat Pumps system – 2 pipe. VRF heat pump systems commonly known as 2 pipe, permit heating or cooling in all of the indoor units but NOT simultaneous heating and cooling.
  • Heat Recovery System- 3 pipe.
  • VRF Water Cooled.
  • Gas Driven.

What is the difference between VRF and split AC?

VRF (variable refrigerant flow) and split AC HVAC systems are two options designed to heat and cool work or living spaces without ductwork. Generally, split AC systems work well for small to mid-sized commercial applications, whereas VRF HVAC systems are for larger buildings.

What are the 3 pipes in a VRF system?

Heat Recovery VRF – 3 Pipe System Each outdoor air-cooled condenser is connected via 3 pipes to an indoor heat recovery unit; a high pressure gas refrigerant line (for heating), a high pressure liquid refrigerant line (for cooling), and a low pressure gas suction line (for return to the outdoor unit).

Which VRF system is best?

Top 10 VRF Systems in 2020:

  • Midea Group.
  • Hitachi.
  • Panasonic Corporation.
  • Mitsubishi Group.
  • United Technologies Corporation.
  • Fujitsu Limited.
  • Chigo.
  • Lg Electronics Inc.

What are the benefits of VRF over conventional AC?

Key benefits of VRF/VRV air conditioning systems: Highly energy efficient. Precise temperature control. Simultaneous heating & cooling. Heat recovery.

How refrigerant flows through the system?

Refrigerant flows through the compressor, which raises the pressure of the refrigerant. Next the refrigerant flows through the condenser, where it condenses from vapor form to liquid form, giving off heat in the process. The heat given off is what makes the condenser “hot to the touch.”.

How does VRF work?

Virtual routing and forwarding (VRF) is a technology included in IP (Internet Protocol) network routers that allows multiple instances of a routing table to exist in a router and work simultaneously. This increases functionality by allowing network paths to be segmented without using multiple devices.

What is a VRF air conditioning system?

The Daikin VRV system is a multi-split type air conditioner for commercial buildings that uses variable refrigerant flow control developed by Daikin to provide customers with the ability to maintain individual zone control in each room and floor of a building.

When was the VRF air conditioner inv?

Variable refrigerant flow (VRF), also known as variable refrigerant volume (VRV), is an HVAC technology invented by Daikin Industries, Ltd. in 1982. Like ductless minisplits, VRFs use refrigerant as the cooling and heating medium.
